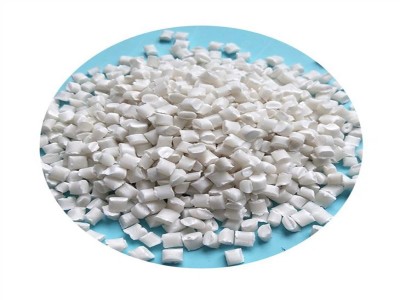

Plastic crate injection molding materials mainly use polypropylene (PP), high-density polyethylene (HDPE), and recycled plastic granules.

Polypropylene (PP): offers high stiffness and good impact resistance. It works well for standard crates in logistics and storage.

The high-density polyethylene(HDPE): provides better strength and chemical resistance. Manufacturers choose HDPE for heavy-duty crates and outdoor applications.

Recycled materials: are becoming more common because they lower production costs. Many crate makers now use post-industrial or post-consumer recycled PP and HDPE.

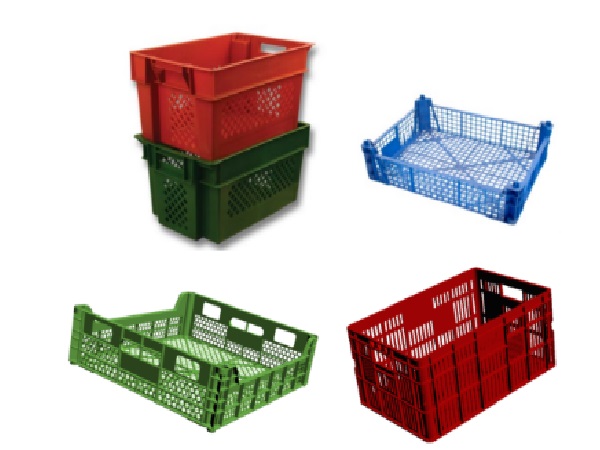

Select the right materials for plastic crates injection molding machine is important. Because It directly determines the plastic crate load-bearing capacity like plastic milk crates, plastic egg crate, plastic storage crates. Also the plastic crates using life, while at the same time, it affects production efficiency and costs. Improper plastic crates material selection may lead to issues such as warping, cracking, or premature aging of the product, resulting in significant economic losses and low production cycle efficiency.

Material choice affects machine settings. What equipment is needed for a factory that produces plastic crates? PP needs lower injection pressure and a melt temperature around 200-230°C. HDPE requires higher temperatures, typically 230-260°C. Recycled materials vary in melt flow. They may need a bi-metallic screw to prevent wear. Each material also affects cooling time and cycle efficiency. At Haichen, we understand the importance and know these differences. We have over 10years experience of whole producing process of plastic crates. And our plastic crate injectoin molding machines are designed to handle all three material types efficiently. We know the different types of plasic crates and machine options.This flexibility helps customers switch between virgin and recycled resins without changing equipment. We can supply Haichen factory plastic crate production line solution.

PP for Standard Plastic Crates Injection Material

• PP material properties

• Benefits for crate production

• Processing requirements

Many crate manufacturers use PP as their primary material. PP has good flowability, which helps fill complex mold cavities. The material also provides excellent fatigue resistance.

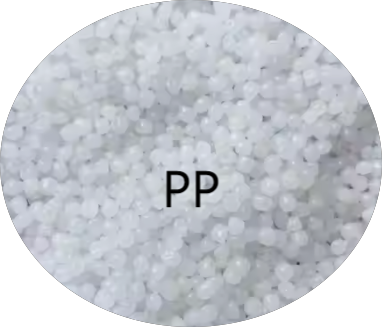

PP for plastic crate injection material properties

PP is semi-crystalline and lightweight. Its density ranges from 0.89 to 0.91 g/cm³. The material does not absorb much moisture, so pre-drying is often unnecessary.

Benefits for crate production

PP crates resist cracking under repeated stress. The material also handles temperatures from 0°C to 100°C. For this reason, PP works well for food storage and cold chain logistics.

Processing requirements

PP melts at 200-230°C. The injection pressure needed is moderate. Cooling time is relatively short, so cycle times stay low.

HDPE for Heavy-Duty plastic crate injection Material

• HDPE strength characteristics

• Chemical resistance advantages

• Processing considerations

HDPE is stronger and more rigid than PP. For this reason, it suits heavy-duty applications like beer crates and industrial bins.

HDPE strength characteristics

HDPE has high tensile strength and excellent impact resistance even at low temperatures. The material density ranges from 0.94 to 0.96 g/cm³. Products made from HDPE last longer under rough use.

Chemical resistance advantages

HDPE resists acids, alkalis, and many solvents. This makes it suitable for chemical storage and outdoor use. The material also has low moisture absorption.

Processing considerations

HDPE requires a melt temperature of 230-260°C. The material shrinks more than PP, so mold design must account for this. Cooling time is longer, but the final product is more durable.

Recycled Materials for plastic crate injection material

• Types of recycled resins

• Equipment adjustments

• Quality considerations

Recycled PP and HDPE are common in plastic crate injection molding work production. These materials lower raw material costs by 20-40%. Many logistics companies now specify recycled content in their crate requirements.

Types of recycled resins

Post-industrial scrap is cleaner and more consistent. Post-consumer recycled material costs less but may contain contaminants. Common sources include packaging waste and industrial offcuts.

Equipment adjustments

Recycled materials often contain fillers or impurities. A bi-metallic screw and barrel resist wear from these contaminants. Melt filtration systems also help remove particles before injection.

Quality considerations

Recycled resins have lower melt flow consistency. This can affect fill time and part strength. Mixing recycled material with virgin resin improves stability. A ratio of 30% recycled to 70% virgin often works well.



Why Material Selection Matters for plastic crate injection Molding?

• Material decides crate strength

• Material decides production speed

• Material affects total cost

Different crate material Feature	PP material crate	HDPE material crate
Durability	rigid	toughness and impact resistance
Temperature Resistance	higher melting point	colder
Weight and Rigidity	lighter and more rigid	denser and heavier
Cost	higher	lower

Material decides crate strength

Different plastics give different strength levels. PP provides good impact resistance for standard crates. HDPE offers higher strength for heavy loads. The wrong material can make crates crack or break under normal use. So matching material to the crate’s job is very important for product quality.

Material decides production speed

Each material needs specific temperature and pressure settings. PP melts fast and cools quickly, so cycle times stay short. HDPE needs longer cooling time, so production per hour is slower. Recycled materials can have uneven flow, and this may cause longer injection times. Choosing the right material helps you reach your target daily output.

Material affects total cost

Virgin PP and HDPE cost more per kilogram. Recycled materials cost 20-40% less. But recycled material may cause more machine wear. This leads to higher maintenance costs over time. The best choice balances raw material price, production efficiency, and machine life. As we shared in our materials article, Haichen helps customers find this balance.

How Haichen Machinery Optimizes plastic crate injection Material Processing

• Custom screw designs for each material

• Real customer production examples

• Technical support for material selection

Haichen machinery has over ten years of experience in plastic crate injection molding machine. Haichen crate making machine match specific material requirements. Our technical team helps customers choose the right resin for their application. Morover, we can supply common problems and solutoin in plastic crate injection molding.

Custom screw designs for each material

PP needs a general-purpose screw with standard compression ratio. HDPE requires a barrier screw with deeper flights for better melting. Recycled materials work best with a bi-metallic screw that resists abrasion.

Real customer production examples

A plastic fruit crates producer in Southeast Asia uses Haichen HCK 310 with PP material. Each crate weighs 350g. Cycle time is 15 seconds per part.

A plastic beer crate manufacturer in Europe runs Haichen HCK 530 with HDPE. Each crate weighs 2.5kg. Cycle time is 25 seconds.

A plastic storage crates maker uses recycled HDPE on Haichen HCK 700. Each crate weighs 1.8kg. Cycle time is 15 seconds.

Technical support for material selection

Haichen offers free material consulting. We analyze your product requirements and recommend the best resin. Our team also suggests machine settings for each material type.

PP, HDPE, and recycled resins are the main materials for plastic crate injection molding. PP works for standard crates. HDPE suits heavy-duty applications. Recycled materials lower production costs. Each material needs specific machine settings and screw designs. Haichen Machinery provides customized solutions for all three material types. With over ten years of experience, we help select suitable injection molding production line for plastic crates and enable customers achieve efficient crate production. Contact us for help selecting the right machine for your plastic crates material.

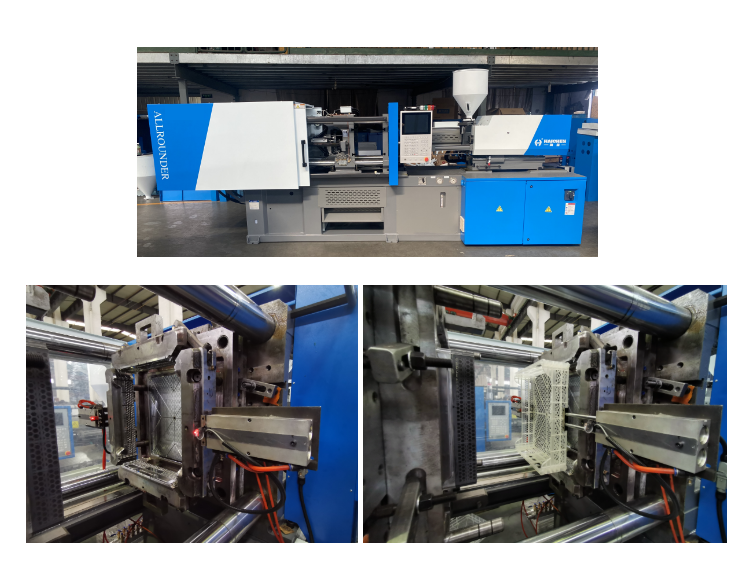

Plastic crate injection machine features

Plastic crate injection machine features includes efficient production, Precision control, temperature control, multi-cavities capability and sustainability, etc.

A plastic crate injection molding machine is specialized equipment designed to manufacture plastic crates through the injection molding process. These machines are engineered to meet the demands of industries such as logistics, agriculture, and retail.

Haichen have more than 20 years to produce the injection molding machine for crate. We can choose the right injection molding machine according to the weight, size, and material characteristics of the crate product.

And we can supply plastic crate production line. You can make an crate injection mold and successfully conduct a trial run.Welcome to consult us.
