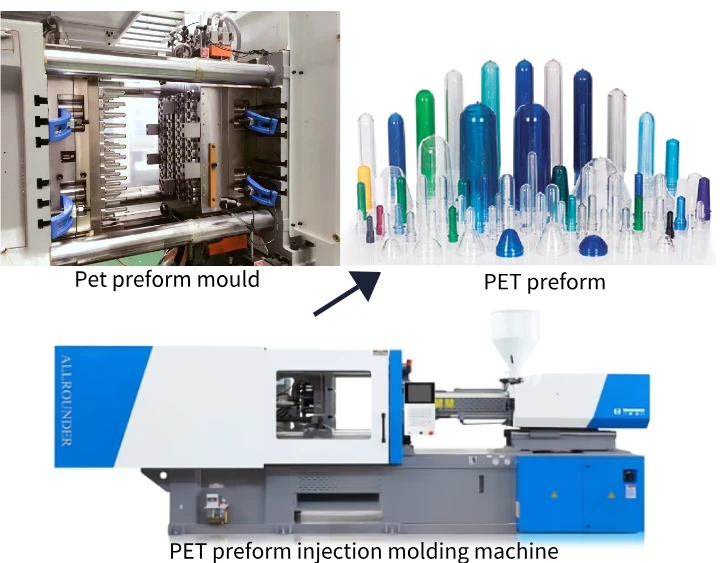

PET preform manufacturing is a process that uses an injection molding machine to melt PET plastic and inject it into a mold to produce bottle-shaped PET preforms.
PET preform manufacturing has five clear steps.
- Step one is material melting. The machine heats PET pellets until they flow like liquid.
- Step two is clamping. The machine holds the mold shut with high force.
- Step three is injection. The machine pushes melted PET into the PET preform mold cavity.
- Step four is cooling. The PET preform hardens inside the mold.
- Step five is ejection. The mold opens and the machine pushes the finished preform bottle out .
Each step needs precise control to make good quality preforms.
What is the PET preform manufacturing matters?

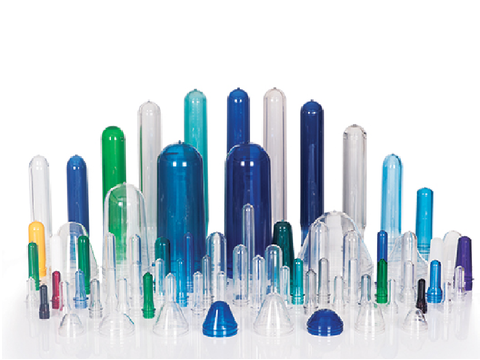

PET preforms are everywhere. Drink bottles, water bottles, oil bottles, and many other containers start as PET preforms . The preform quality directly affects the final bottle quality. A good preform makes a strong, clear bottle. A bad preform makes a weak or cloudy bottle. Manufacturers store and ship preforms easily because they are small. This saves space and money compared to shipping empty bottles.
Step 1 – Material Preparation and Melting
-
The melting process
-
Temperature control importance
The melting process

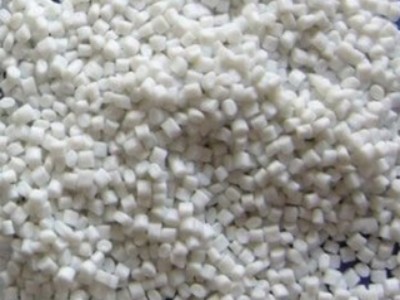

PET is the raw materials, it will absorb moisture from the air. This moisture causes problems during injection. Wet PET creates cloudy preforms with bubbles. A dryer removes this moisture before the pellets enter the machine . The drying temperature is around 160°C. Drying time is 4 to 6 hours. Dry PET produces clear, strong preforms.

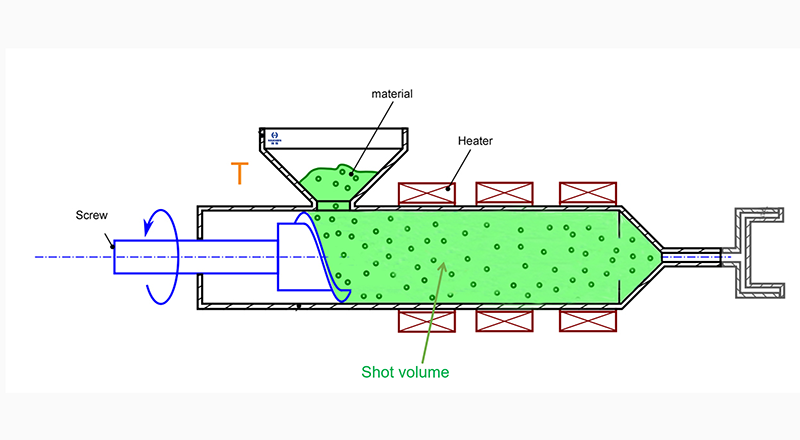

The PET injection molding machine feeds dry PET pellets into a heated barrel. A screw rotates inside the barrel and pushes the pellets forward. The barrel has multiple heating zones. The temperature rises from the back to the front. The PET melts gradually as it moves along the barrel. The melted PET collects at the front of the screw, ready for injection.
Temperature control importance
PET has a narrow processing window. The melt temperature must stay between 275°C and 290°C . Too hot and the PET degrades. This creates yellow preforms with low strength. Too cold and the PET does not flow well. This causes incomplete filling. Our PET injection molding machine provides precise temperature control across multiple barrel zones to keep PET within this range.
Step 2 –Mold closing And Clamping
Mold closing and clamping

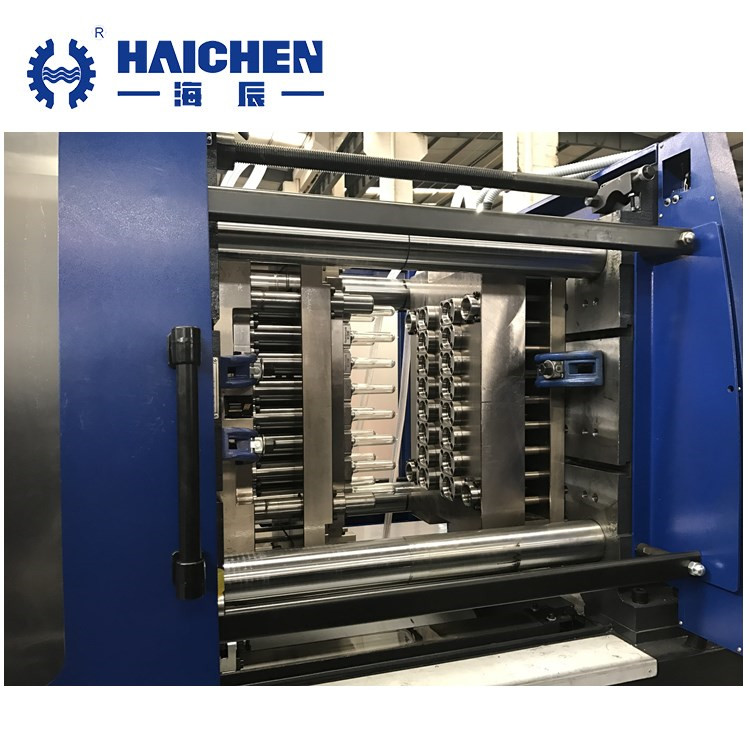

The clamping unit moves the mold halves together. Once closed, the machine applies high clamping force. This force keeps the mold shut during injection. For PET preforms, the injection pressure is very high . The clamping force must be higher than the force from the injected plastic. Low clamping force causes flash. Flash is thin plastic that leaks out between mold halves.
Step 3 –Injection
-
Injection into the cavity
-
Pressure and speed settings
Injection into the cavity

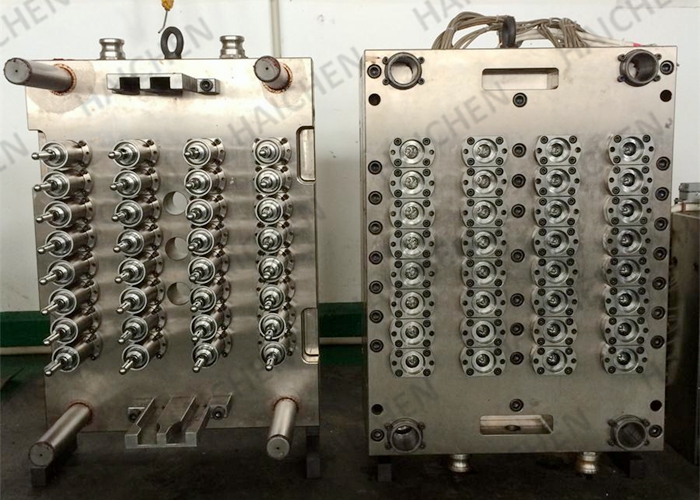

The screw moves forward like a plunger. It pushes melted PET through the nozzle into the mold. PET flows through a hot runner system. The hot runner keeps the plastic melted as it travels to each cavity. PET preform molds often have 32, 48, 72, or even 144 cavities . The plastic must fill every cavity evenly.
Pressure and speed settings
Injection pressure for PET preforms is typically around 140 bar . The injection speed must be fast enough to fill the cavities before the PET starts to cool. But too fast can cause air traps. Injection time is very short. For many preform molds, filling takes less than 2 seconds. Our Haichen machinery produce PET injection molding machines use closed-loop servo control to maintain consistent injection speed and pressure.

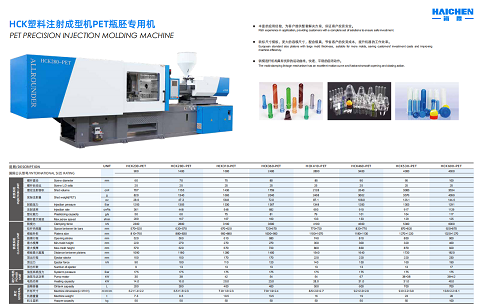

| Haichen 230ton PET TECHNICAL PARAMETERS | |||
| 国际标准型号 | INTERNATIONAL CLASS NO | HCK230-PET | |
| 注射装置 | INJECTION UNIT | ||
| 螺杆直径 | Screw diameter | mm | 60 |
| 螺杆长径比 | Screw L/D ratio | L/D | 25 |
| 理论注射容量 | Shot volume(theoretical) | cm3 | 707 |
| 注射重量 | Injection weight(ps) | g | 820 |
| oz | 28.9 | ||
| 注射压力 | Injection pressure | Bar | 1293 |
| 注射速率 | Injection rate | cm3/s | 361 |
| 塑化能力 | Plasticizing capacity | g/s | 50 |
| 螺杆转速 | Screw speed （Max.) | r/min | 200 |
| 锁模装置 | CLAMPING UNIT | ||
| 锁模力 | Clamping force | kN | 2300 |
| 拉杆间距(宽*高) | Space between tie bars(W×H) | mm | 570X520 |
| 模板外型 | Platens size | mm | 810X760 |
| 移模行程 | Opening stroke | mm | 520 |
| 最小模厚 | Min.Mold height | mm | 220 |
| 最大模厚 | Max.Mold height | mm | 570 |
| 模板最大距离 | Distance between platens(daylight) | mm | 1090 |
| 顶出行程 | Ejector stroke | mm | 150 |
| 顶出力 | Ejector force | kN | 90 |
| 其他 | OTHERS | ||
| 油压系统压力 | Systerm pressure | Bar | 175 |
| 油泵马达功率 | Pump motor | KW | 30 |
| 加热功率 | Heating power | kW | 14 |
| 油箱容积 | Oiltank cubage | L | 200 |
| 外形尺寸（长*宽*高） | Machine dimension(L×W×H) | m | 6.2X1.4X2.2 |
| 机器重量 | Machine weight | t | 7.3 |
Step 4 – Cooling
Cooling
After injection, the cooling stage starts. The mold has cooling channels inside it. Cool water flows through these channels. The water takes heat away from the melted PET. The preform hardens from the outside inward. Good cooling design removes heat evenly. Uneven cooling causes warped preforms.
Step 5 – Ejection
Ejection
Once the preform hardens, the mold opens. Ejector pins push the preforms off the mold core. Some systems use a robot to remove the preforms . The preforms then fall onto a conveyor belt. A quality check system inspects each preform. This is one of key PET bottle preform injection molding production line. The machine rejects any preform with defects like bubbles or short shots.
Key Features to Look for in a High-Performance PET Injection Molding Machine
Selecting the right PET injection molding machine is a strategic decision. Here are the critical features and specifications to evaluate what water bottle injection molding machine manufacturer provide
Energy Efficiency and Cost Savings
In modern manufacturing, energy consumption is a major operational cost. Servo-hydraulic systems have become the industry standard for energy savings. Compared to traditional hydraulic machines, a servo-driven PET injection molding machine can save 30% to 60% of energy consumption . This is achieved by using a servo motor to drive the hydraulic pump, which only operates at the required speed and pressure, rather than running continuously at full speed. Over the lifetime of a machine, these energy savings can represent a significant portion of the total cost of ownership.
Clamping Force and Machine Rigidity
The clamping unit must provide sufficient force to keep the mold shut during the high-pressure injection phase. For PET preform production, which uses high injection pressures, a robust clamping system is a must. The machine’s structure must be rigid to withstand these forces without deflection, ensuring the mold halves stay perfectly aligned. HAICHEN’s machines are built with high-rigidity frames and reliable clamping mechanisms to guarantee mold protection and consistent part quality . Their specifications include options like a 2300 kN clamping force for the HCK230-PET model, scaling up to 4600 kN for larger units . For high-cavity molds, this clamping force is non-negotiable.
Plasticizing Performance and Screw Design
The screw and barrel assembly is the heart of the injection unit. For PET, a specialized screw with a high L/D ratio (length-to-diameter) is essential for optimal melting and homogenization. The screw design must efficiently melt the PET without causing degradation. The use of a mixing metal screw head ensures excellent plasticizing performance, which is a hallmark of HAICHEN’s PET preform injection molding machine lineup . This results in a consistent melt quality, free from “unmelted” particles or variations in color and viscosity.
Control System and Precision
Modern PET injection molding machines are equipped with sophisticated computer control systems that manage all parameters: temperatures, pressures, speeds, and cycle times. A high-quality control system provides:
-
Closed-loop control: Monitors and adjusts parameters in real-time to ensure consistency from cycle to cycle.
-
User-friendly interface: Allows for easy setup, monitoring, and troubleshooting.
-
Data logging: Tracks production data for quality control and process optimization.
HAICHEN’s machines feature state-of-the-art controllers that provide the precision and data needed to maintain a competitive edge. With the ability to fine-tune every aspect of the process, you can achieve optimal cycle times and minimal scrap rates.
Comparing PET Injection Molding Solutions: What to Expect from HAICHEN Machinery
When evaluating suppliers, it’s important to look beyond the brochure. HAICHEN stands out as a reliable partner for pet preform manufacturers worldwide.
Product Portfolio Overview
HAICHEN offers a comprehensive range of PET injection molding machine models to suit diverse automated injection molding production system for PET preforms production needs. For instance, the HCK460-PET model is a powerful solution with a clamping force of 4600 kN, a maximum injection weight of 3062g (PS), and a plasticizing capacity of 101 g/s . This machine is ideal for high-volume production of large or heavy preforms. The technical specifications demonstrate a focus on performance and reliability, making them a preferred choice for demanding bottle preform making machine applications.
Build Quality and Reliability
A PET injection molding machine is a long-term capital investment. Reliability is paramount to avoid costly downtime. HAICHEN’s machines are built to last, incorporating high-quality hydraulic and electrical components. We have over 10years experience of the problem and solution about PET injection molding. The robust construction minimizes maintenance requirements and ensures consistent performance over years of continuous operation. Their machines are CE certified and comply with international safety standards, offering peace of mind for global customers.
Choosing the right PET injection molding machine is a pivotal decision for any packaging manufacturer. The technology directly influences production efficiency, product quality, and profitability. By understanding the critical steps in the preform manufacturing process and the key features that define a high-performance machine, you can make an informed investment that secures your competitive advantage.
HAICHEN machinery, with over ten years of dedicated experience, is committed to providing superior levels of PET preform injection molding machines that deliver precision, energy efficiency, and long-term reliability. Our expertise in the field of PET preform manufacturing ensures you get a solution perfectly tailored to your production goals.
Welcome contact HAICHEN machinery today to discuss your specific requirements. Our team of experts is ready to help you find the ideal PET injection molding manufacturing for your business. And we will offer suitable price of PET preform injection molding production line.
