A complete PET preform injection molding system typically ranges from $24,700 to $93,100+ for standard configurations, depending on the clamping force (tonnage), cavity count, and ancillary equipment (such as dryers and chillers) required.
A breakdown of pricing and line components includes:
- Core Injection Molding Machine: $21,000 to $60,000+. Smaller, single-mold units range lower, while high-speed, multi-cavity servo-motor machines cost $70,000 to $120,000+.
- Auxiliary Equipment: $2,000 to $25,000. This includes resin dryers, chillers, mold temperature controllers, auto-loaders, and take-out robots.
- PET Preform Molds: $7,000 to $150,000. The cost depends heavily on cavity count (e.g., 24, 48, or 72 cavities) and the hot runner system.
For beverage and packaging manufacturers, the pet preform injection molding machine price represents one of the most critical investment decisions. The answer is not a single number—it varies based on your production needs.
PET preform machines are specialized for producing pet bottle preform units. Unlike general-purpose pet injection molding machines, they feature PET-specific screws and optimized cooling systems that impact final plastic bottle preform quality.
Understanding what drives the cost of a preform injection machine helps you maximize returns. Whether you produce bottle preforms for water or edible oils, the right pet preforms machine defines your profitability.
Machine Specifications
The most direct factor affecting your preform injection machine cost is the machine’s core specifications.
- Clamping Force
- Shot Volume & Injection Unit
- Platen Size & Tie Bar Spacing
Clamping Force
Clamping force scales with price. For pet preform production, machines range from 180 to 600+ tons. Rule of thumb: 8–12 tons per cavity, depending on preform bottle wall thickness.
As clamping force increases, equipment cost rises 8–12% per additional 100 tons.
Shot Volume & Injection Unit
Shot weight must match your pet bottle preform weight × cavity count. For 48 pet preforms at 18g each, you need ~864g per cycle. Best practice: required shot weight should be 30–80% of machine capacity.
Larger injection units cost more, but oversizing wastes capital.
Platen Size & Tie Bar Spacing
Larger platens and wider tie bar spacing allow bigger molds and higher cavity counts for bottle preform applications. These require heavier castings and larger components, increasing base machine cost by 15–30%.
PET Preform Machine Selection Guide by Production Volume
Choosing the right PET preform injection molding machine depends on your daily output targets. Here is a practical guide based on production volume:
| Production Volume (preforms/day) | Recommended Machine | Clamping Force | Recommended Cavities | Estimated System Cost |
|---|---|---|---|---|
| Up to 10,000 | HCK180-PET | 180 tons | 16-24 | $80,000 – $150,000 |
| 10,000 – 30,000 | HCK280-PET | 280 tons | 32-48 | $120,000 – $200,000 |
| 30,000 – 60,000 | HCK410-PET | 410 tons | 48-72 | $200,000 – $350,000 |
| 60,000 – 100,000+ | HCK530-PET or larger | 530+ tons | 72-96 | $400,000 – $1,500,000+ |
Selection tips for PET preform injection molding machines:
- Startups and R&D: Choose 16-24 cavity systems with HCK180-PET to minimize initial investment while learning PET preform processing
- Regional bottlers: 48-cavity molds with HCK280-PET or HCK310-PET offer the best balance of cost and output for PET preform production
- Large-scale producers: 72-96 cavity systems with HCK530-PET or higher maximize output and minimize per-unit cost for high-volume pet bottle preform manufacturing
Number of Cavities
Mold cavities are one of the largest cost components in a pet preform injection molding machine system.
- Low Cavity Configurations
- Mid-Range Cavity Systems
- High Cavity Setups
Low Cavity Configurations

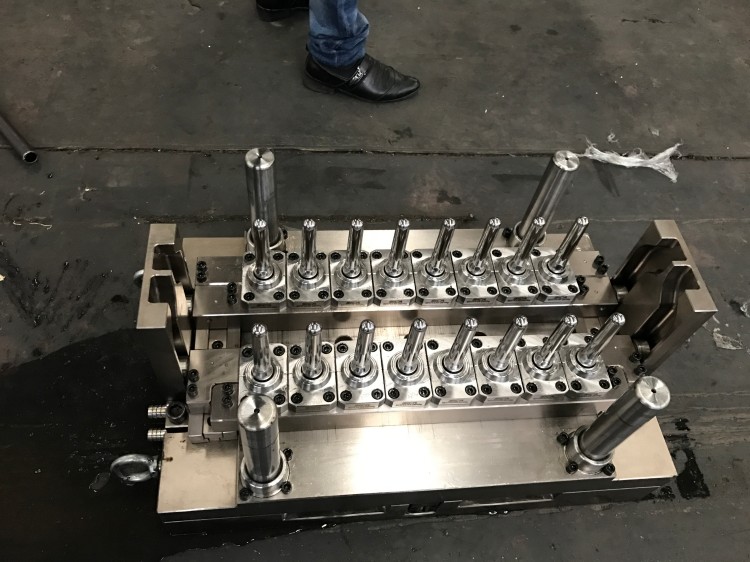

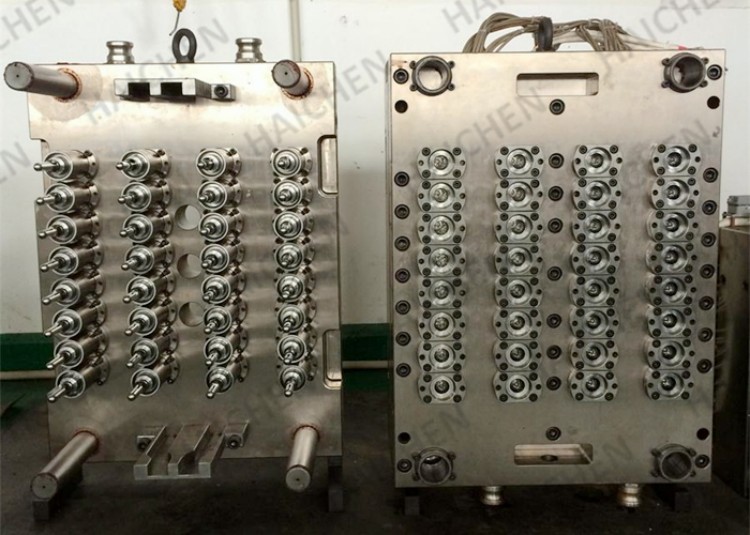

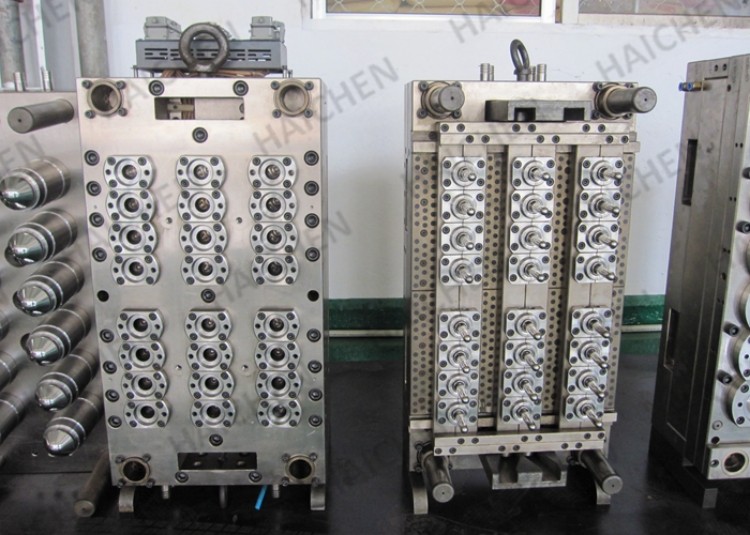

16–32 cavity systems suit startups or R&D. Entry-level preform injection machines with 16–24 cavities cost $80,000–$150,000 complete. A 16-cavity hot runner mold for pet preforms adds $60,000–$120,000.
Mid-Range Cavity Systems
48 cavities are the sweet spot for regional bottlers. A 48-cavity mold for 28mm neck preform bottle units needs 220–300 tons clamping force. Complete system price (servo energy saving) ranges $120,000–$200,000+.

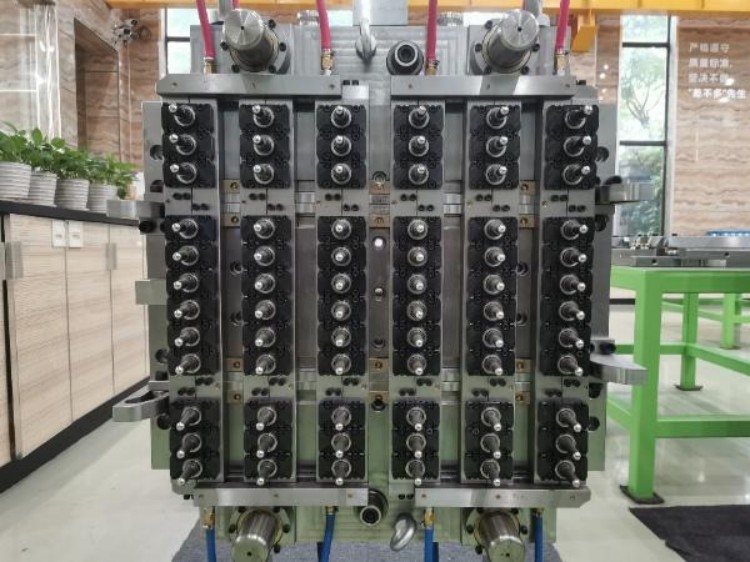

High Cavity Setups
72–96 cavity systems maximize output for large-scale producers. They require 400–600+ tons clamping force. European premium systems can cost $500,000–$1,500,000+ including molds and automation.
 |
 |
 |
 |
Drive System
The drive system impacts both upfront price and long-term operating expenses.
- Variable Pump Systems
- Servo Energy-Saving Systems
- Energy Cost Savings
Variable Pump Systems
Conventional hydraulic preform injection machines have lower initial prices but consume 30–50% more electricity than servo alternatives.
Servo Energy-Saving Systems
Haichen’s HCK series uses servo motor technology. Servo motors consume energy only during operation—zero during cooling or idle. This is ideal for pet preform production with long cooling times. Servo cuts energy use 30–70% and responds in 0.04 seconds.
Below are two separate price tables showing the cost difference between PET-specific and standard machines:

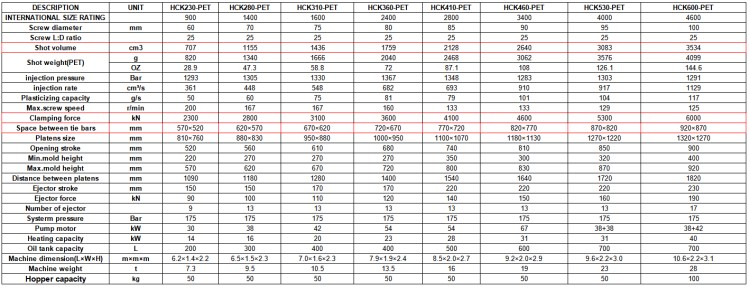

Haichen HCK-PET Series (Dedicated for PET Preform Production)
| Model | Price Range (FOB USD) |
|---|---|
| HCK180-PET | $24,700 – $27,000 |
| HCK230-PET | $27,500 – $30,100 |
| HCK280-PET | $33,000 – $36,200 |
| HCK310-PET | $38,500 – $42,200 |
| HCK360-PET | $49,000 – $53,600 |
| HCK410-PET | $55,300 – $60,600 |
| HCK460-PET | $65,800 – $72,000 |
| HCK530-PET | $74,900 – $82,000 |
| HCK600-PET | $85,000 – $93,100 |
Note: FOB China, including PET screw, dual-platform injection, 8″ screen.
Haichen HCK Standard Series (General Injection Molding)
| Model | Price Range (FOB USD) |
|---|---|
| HCK180 | $21,500 – $23,600 |
| HCK230 | $24,700 – $27,000 |
| HCK280 | $29,300 – $32,100 |
| HCK310 | $34,200 – $37,400 |
| HCK360 | $42,500 – $46,500 |
| HCK410 | $49,200 – $53,800 |
| HCK460 | $58,300 – $63,900 |
| HCK530 | $66,500 – $72,800 |
| HCK600 | $75,500 – $82,700 |
Price difference summary: PET-dedicated machines cost $2,800 – $9,500 more than standard. This premium covers PET-specific screw, dual-platform injection, and optimized controls. For long-term pet bottle preform production, payback occurs within 2–3 months via lower scrap and cycle times.
Energy Cost Savings
Energy accounts for 15–25% of pet bottle preform production cost. For high-volume lines running 20+ hours daily, a servo-driven preform injection machine saves $10,000–$20,000 annually in electricity. All-electric machines save up to 60% with 2–3 year payback.
Investment Return Analysis for PET Preform Machines
Understanding the return on investment helps justify the pet preform injection molding machine price. Here is a 3-year ROI comparison for different configurations:
| Configuration | Initial Investment | Annual Energy Cost | Annual Maintenance | 3-Year Total Cost | Payback Period |
|---|---|---|---|---|---|
| HCK180-PET (24 cavities) | $110,000 | $8,000 | $4,000 | $146,000 | 18-24 months |
| HCK280-PET (48 cavities) | $185,000 | $12,000 | $6,000 | $239,000 | 14-18 months |
| HCK410-PET (72 cavities) | $320,000 | $18,000 | $9,000 | $401,000 | 10-14 months |
Key ROI drivers for PET preform injection molding machines:
- Energy savings: Servo-driven machines save $10,000–$20,000 annually compared to hydraulic systems
- Cycle time reduction: Optimized cooling systems in PET-specific machines reduce cycle time by 15-25%
- Scrap reduction: PET-specific screws and controls reduce scrap rates from 3-5% to under 1%
Auxiliary Equipment
Many buyers overlook that the machine itself is only part of the total system cost for plastic bottle preform manufacturing.
- PET Drying Systems
- Chillers & Cooling Towers
- Mold & Hot Runner Systems
PET Drying Systems
PET resin is moisture-sensitive. Without drying (dew point below -40°C), pet preforms become cloudy or fail. A quality dehumidifying drying system costs $8,000–$25,000—essential for any pet preform operation.
Chillers & Cooling Towers
Efficient cooling reduces cycle times and increases bottle preform output. Water chiller systems add $5,000–$15,000. With mold temperature controllers ($2,000–$6,000 each), cycle times drop 15–25%.
Mold & Hot Runner Systems
Mold cost varies by cavity count for preform bottle manufacturing:
| Cavity Count | Estimated Mold Cost (USD) |
|---|---|
| 4 cavities | $7,000 – $15,000 |
| 16 cavities | $60,000 – $120,000 |
| 48+ cavities | $150,000+ |
Hot runner systems for high-cavity molds cost $30,000–$80,000 alone.
So, how much does a pet preform injection molding machine cost? It depends on:
- Machine specifications – Clamping force, shot volume, platen size: $24,700 (HCK180-PET) to $93,100 (HCK600-PET).
- Number of cavities – Higher cavities need larger machines and costlier molds. Complete systems: $60,000–$150,000+.
- Drive system – Servo saves 30–70% energy, pays back premium in 2–3 years.
- Auxiliary equipment – Drying, cooling, molds add 40–60% to total investment.
The best preform injection machine is not the cheapest—it matches your volume, preform bottle specs, and energy costs.
As a direct manufacturer, Haichen offers competitive pricing on all HCK and HCK-PET series for pet injection molding. Contact us for a personalized quote based on your pet bottle preform requirements.
