Pen Making Machine

Plastic pen production will need three machines: a pen injection molding machine, an ink refill machine, and an automatic pen assembly machine.

5 steps to manufacture a ballpoint pen:

Haichen 160t -310t plastic pen injection machine suit for all of the pen making.

A fully automatic ball pen making machine, will need a pen injection molding machine and an automatic pen assembly machine.

To illustrate the automatic pen machine, we need to first understand the types of pens. There are many types of pens. Like ballpoint pens, DF pens, gel pens, Novelty Pens… Normally all of those pens’ plastic parts, are made by a pen injection molding machine.

There are lots different between the pen. Like the biggest difference between a DF pen and an ordinary pen is that a DF pen is to pour ink directly into the barrel, which is equivalent to the entire barrel becoming a refill. The ordinary pen has a separate refill, the ink is poured into the refill, and then the refill is put into the barrel, which is a complete pen. DF pens have no way to replace the refill, and can only be discarded directly after use. Some accessories of DF pen can also be produced with injection molding machines, but customers need to solve the part of filling ink by themselves.

Step 1: Raw material preparation for all of the pen components.

As you know different parts of the pen with different materials. Like the pen barrel we will use PP, pen pipe will use other materials…

Pen body: usually made of plastic or metal. Like the cap, barrel, and ink tube are made of plastic
Pen tip: consists of a ball and an ink channel. The ball rolls during writing, transferring ink from the pen tip to the paper.
Pen refill: Contains ink, usually made of plastic or fiberglass.
Ink: The ink used in ballpoint pens is usually oil-based or water-based, depending on the type of pen.

Step 2: Ballpoint pens part manufacturing process by injection molding.

Normally the ballpoint pens differnt parts will need differnt machines. Normally, the whole production line for automatic pen machines, includes 3 main machines as belows:

Injection molding the pen plastic parts- by injection molding machine;
Ink pipe production- ink filling machine;
Assembling the pen parts- Full automatically assembly machine;

The injection molding machine is the first machine in the whole automatic pen machines. It will injection molding machine pen barrle,cap,tube, grip…

Step 3: Pen refill production.

After the extortion machine produces the ink pipe, we can start to fill the ink into pipe, by filling machine.

Adding ink: Add ink to the plastic tube after extruction. This step requires precise control of the length of the ink to ensure sufficient ink filling and no bubbles.
Sealing end: Seal the other end of the plastic pipe to ensure that ink does not leak.
Installing steel balls: Install steel balls at one end of the plastic tube, which are the part of the ballpoint pen that comes into contact with paper when writing.

Step 4: Assembling the pens process

At last, the ballpoint pen automatic assembly line is a production line that uses mechanical devices to automatically complete the assembly of ballpoint pens. This type of production line typically includes multiple workstations, each responsible for different assembly tasks such as automatic pen holder placement, automatic pen core loading, automatic pen nozzle loading, automatic pen nozzle rotation, automatic tail plug loading, and automatic pen cap loading. Each stage is equipped with testing institutions to ensure precise and stable production.

Step 5: Testing and Quality Inspection.

Finally, the quality inspection of ballpoint pens after assembly is a complex and multi-step process involving multiple aspects of testing and inspection. The key is the inspection of appearance and usage. A standardized testing mechanism ensures the quality of ballpoint pens manufacture.

In summary, the automatic pen machines including 3 machines: injection molding machine, ink filling machine, assembling machine.

The injection molding machine produce the main plastic parts for pens; ink filling and assemble.

Haichen success case for pen parts making

Item: Pen barrel
Mould: 8 cavities
Machine: HCK 160

Item: Pen cap
Mould: 32 cavities
Machine: HCK 200

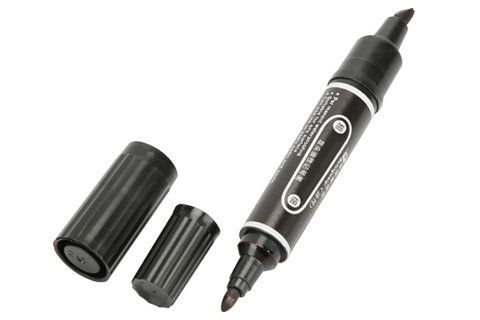

Item: Mark Pen
Mould: 5 sets
Machine: HCK 160

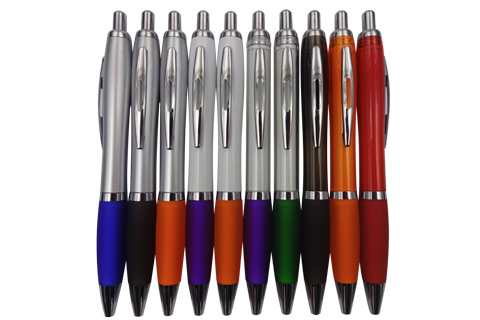

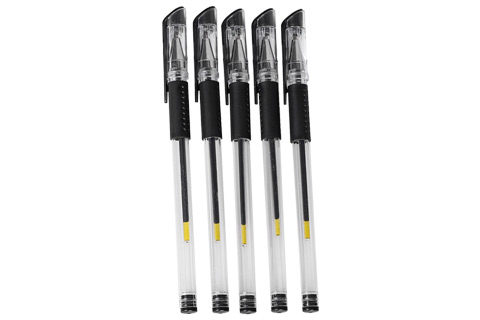

Item: Ball Pen
Mould:6 sets
Machine: HCK 160

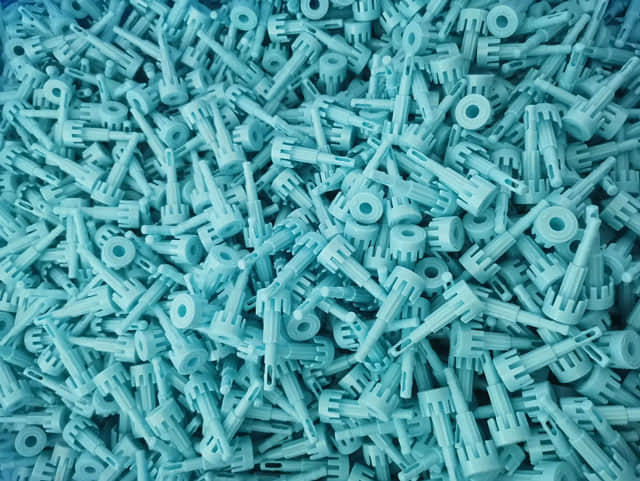

Item: Inner push of Pen
Mould:8 cavities/16 cavities
Machine: HCK 160

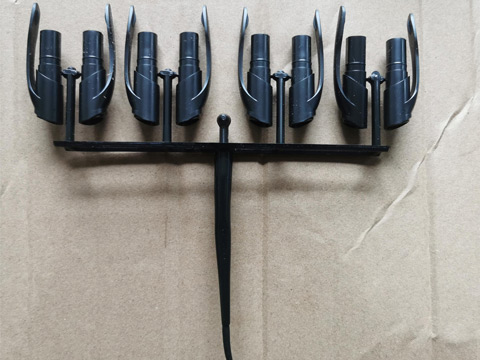

Item: Pen cap
Mould: 8 cavities
Machine: HCK 110

Item: Pen cap
Mould: 8 cavities
Machine: HCK 150

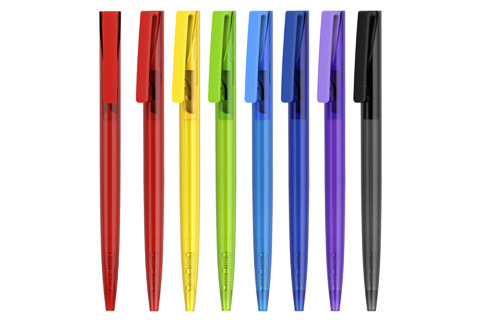

Item: Pen barrel
Mould: 8 cavities
Machine: HCK 150

Parts of a pen

The parts of a pen like pen barrel, pen clip, pen tip, thrust device, thrust tube, spring, reservoir, socket, ball & ink.

Pen barrel and pen hold parts:

These are the main components of ballpoint pens, usually injection molded with ABS plastic. Haichen’s injection molding machine users can provide injection molding services for ballpoint pen plastic shell molds, pen covers, and pen holder accessories.

2. Pressing parts and tube:
These components are also important parts of ballpoint pens and usually require customized injection molding. Pen push, inner push…

3. Pen cap and protective cover:
These accessories are used to protect the pen tip and other internal parts of ballpoint pens. Like pen cap, pen grip…

4. Other small accessories:
Including cartoon doll push pen buckles, pencil buckles and other creatively designed accessories.

The pen injection molding machine produce the main parts of pen.

One-stop solution for pen making

Mold selection and Machine choosing. We can supply the solution for ball pen prodction.

20 years +

Haichne has 20 years of experience for pen production.

21 language

Haichen machine with 21 different languages one display screen.

Easy operate !

On line support

We will support technical service online.

Any problem we can check on line for pen production.

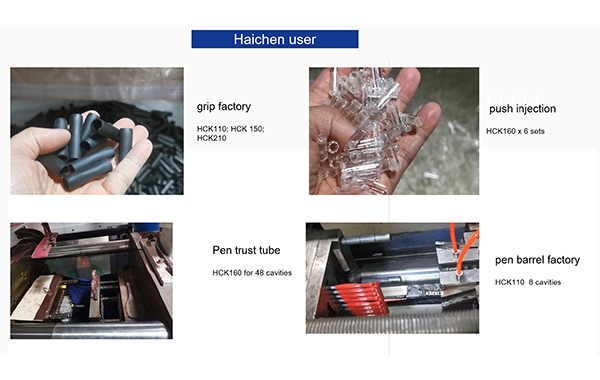

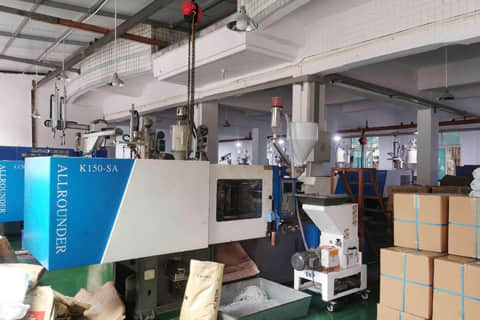

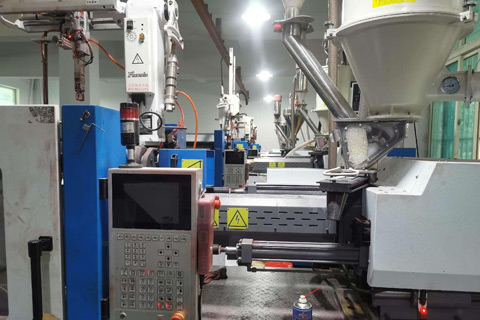

Case show- Customer useing Haichen automatic pen machine

Ball Pen Factory

China is the world’s largest producer or region of ballpoint pens, with numerous ballpoint pen production bases and manufacturers. Haichen HCK110; HCK 150; HCK210 pen making machine user – this factory over 12 years.

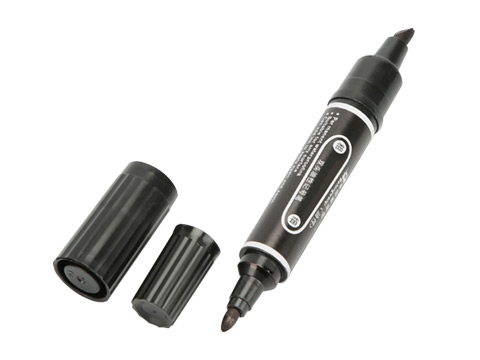

Mark Pen Factory

Tonglu city, the base of China’s ballpoint pen manufacturing.Including raw material supply, mold processing, accessory manufacturing, automation equipment,the whole chain of pen making.HCK160 x 6 sets It is a new pen manufacture for 3 years

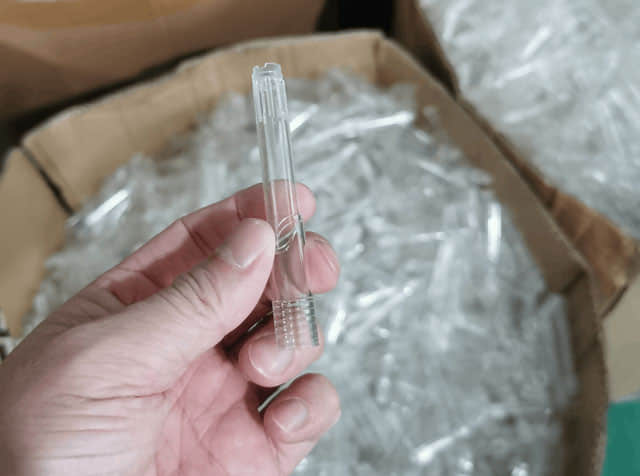

Pen Trust Tube supplier

Pen turst tube use Haichen HCK160 for 48 cavities mold. The output of pen trust is 168 pcs per one min.

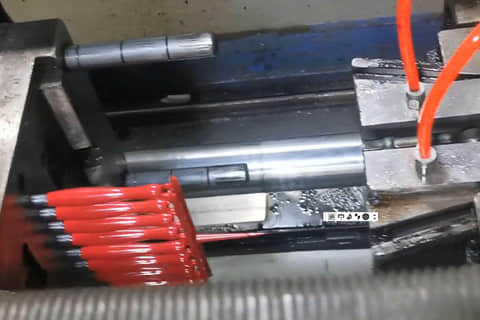

Pen Barrel Factory

The pen barrel injection molding machine HCK110 with 8 cavities barrel mold. One min 3 injection cycle.

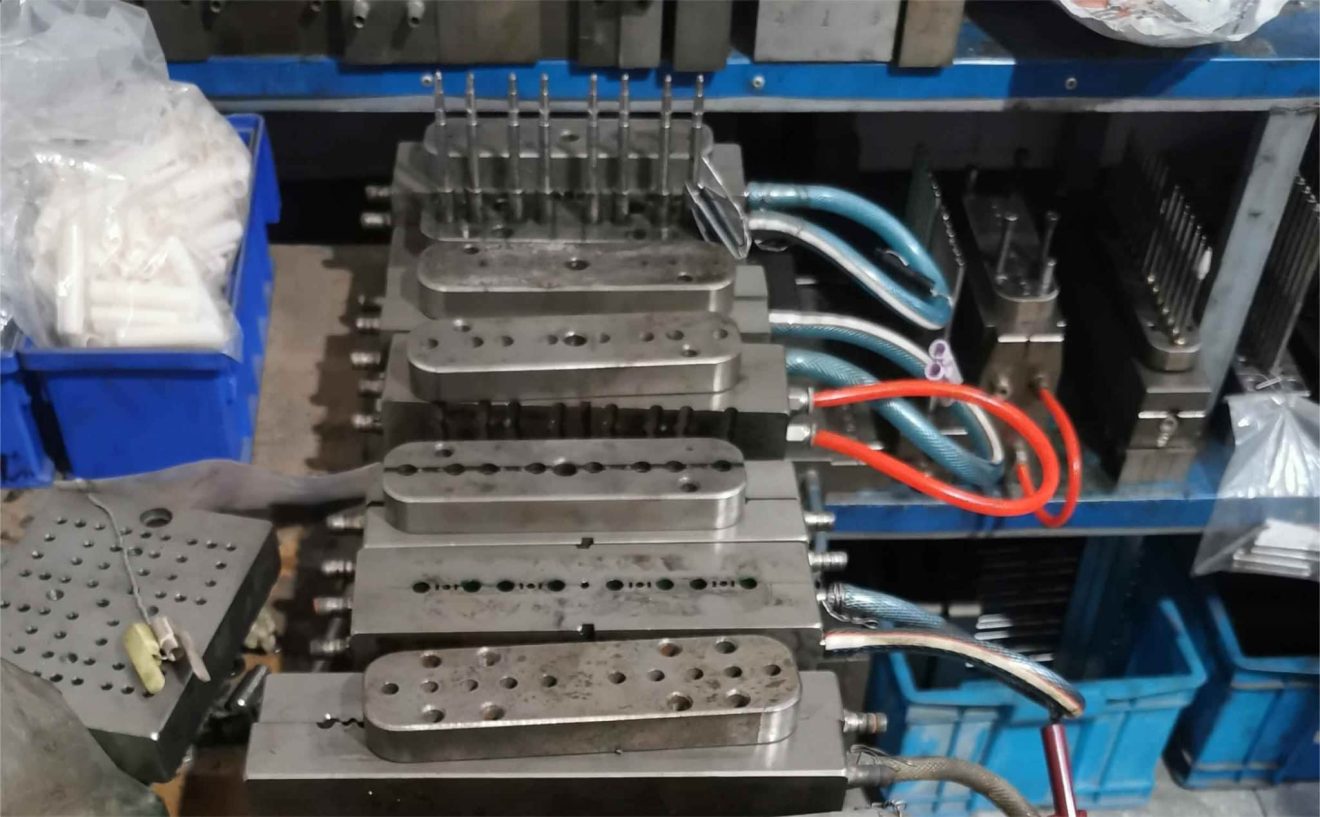

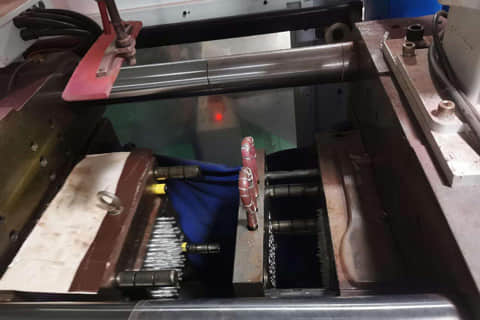

Pen molds maker

More than 50 sets plastic molds for pen production. The mold have to consider factors such as parting surface splitting, injection port, plastic material, product weight, wall thickness…

Pen Mold replacement parts

As the pen always is similar, some times just need to change inner parts for mold, we can produce similar one. No need to change all of the pen mold parts.

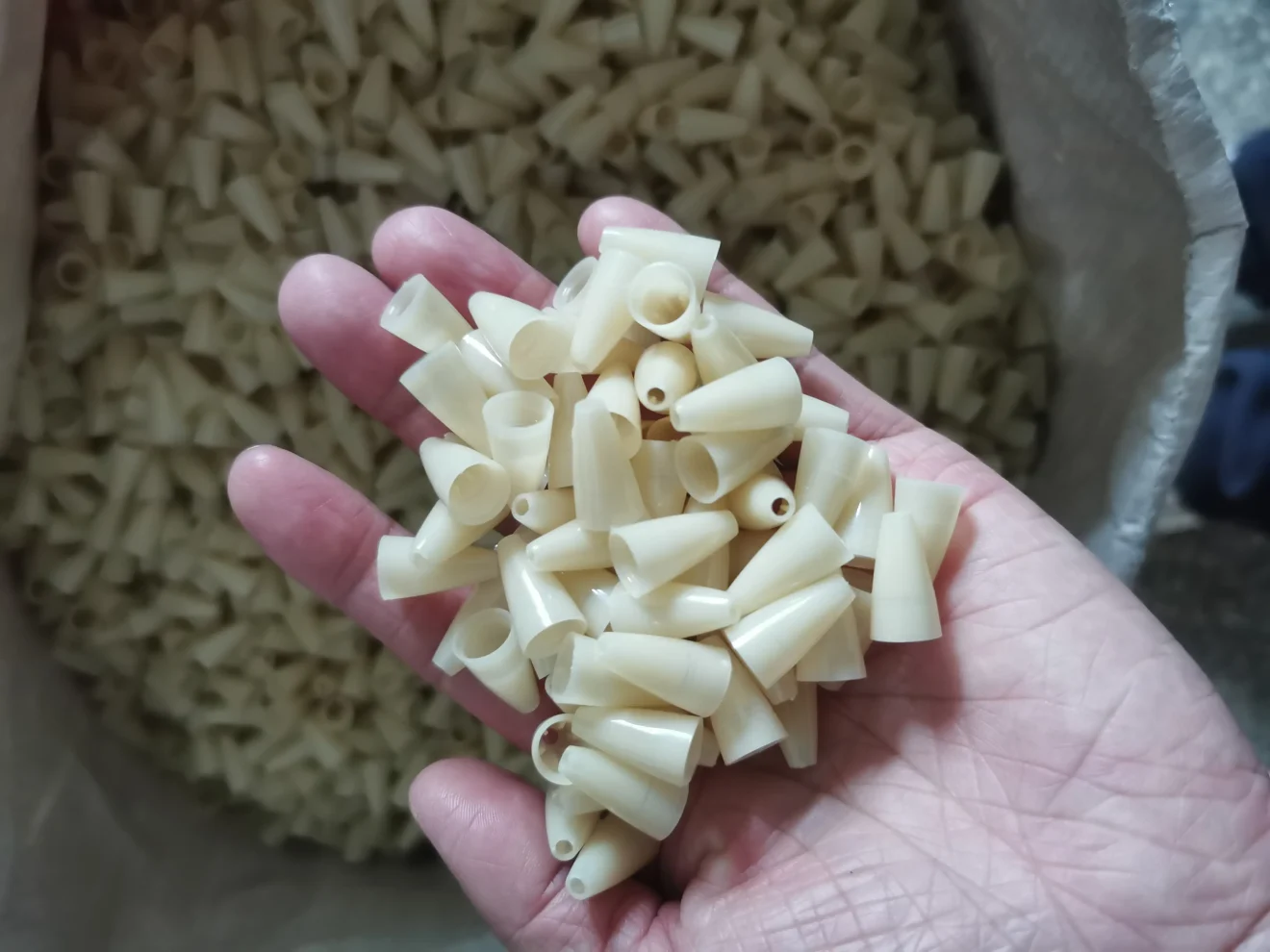

Pen cap factory

4 cavities ball pen cap factory with Haichen machine.

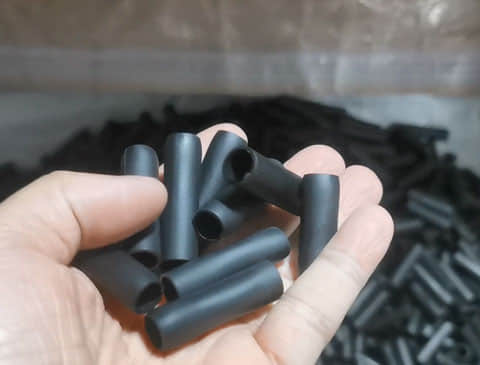

Pen grip manufature

One our haichen machine user,is the manufacture of pen grip.

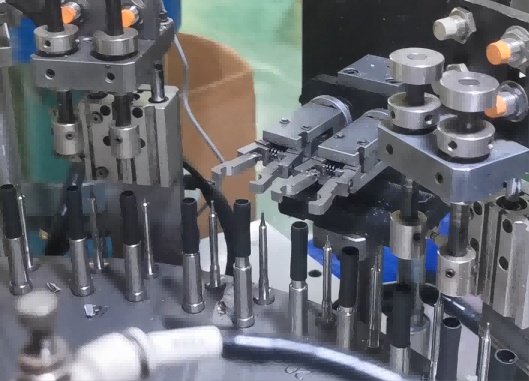

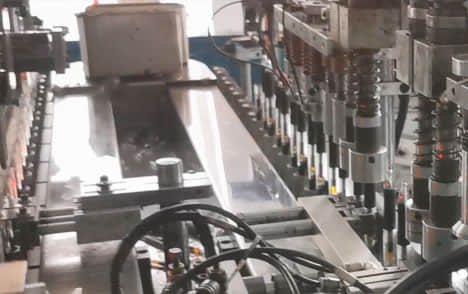

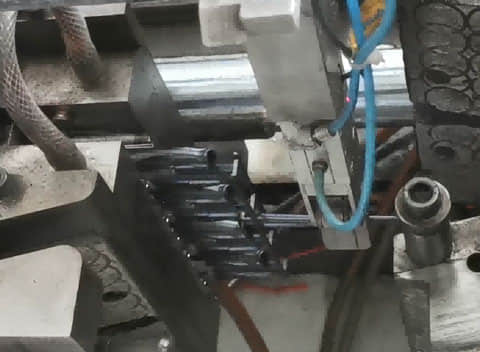

Pen assembly machine

Automatically assembly machine for pen. Automatically combines various components of a ballpoint pen (such as the pen holder, cap, pen core, pen tip, etc.) into a complete ballpoint pen.

Pen Assembling Process

For the pen head assembling machine. Automatically combine into a complete ballpoint pen in a certain order and manner.

Why choose Haichen plastic bucket injection molding machine?

Clamping unit assembling

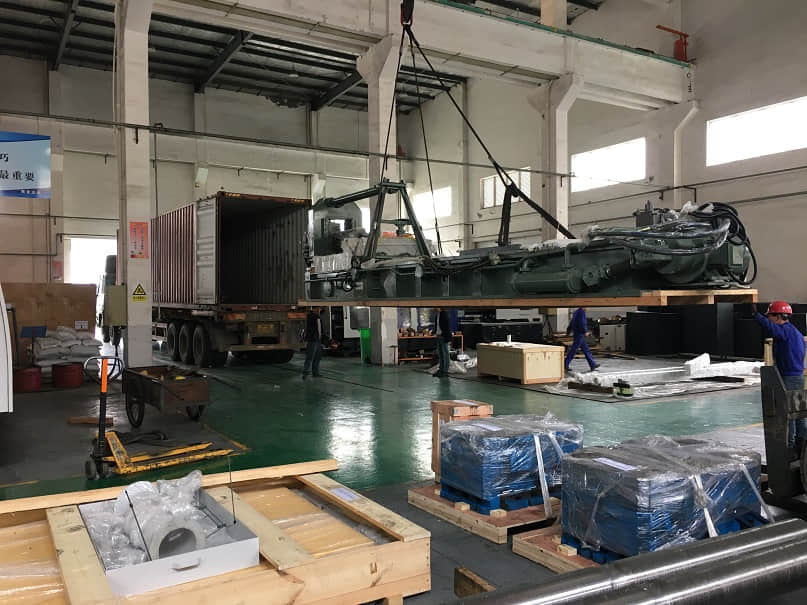

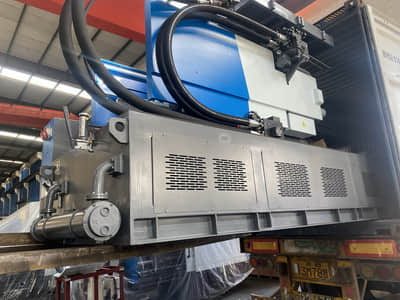

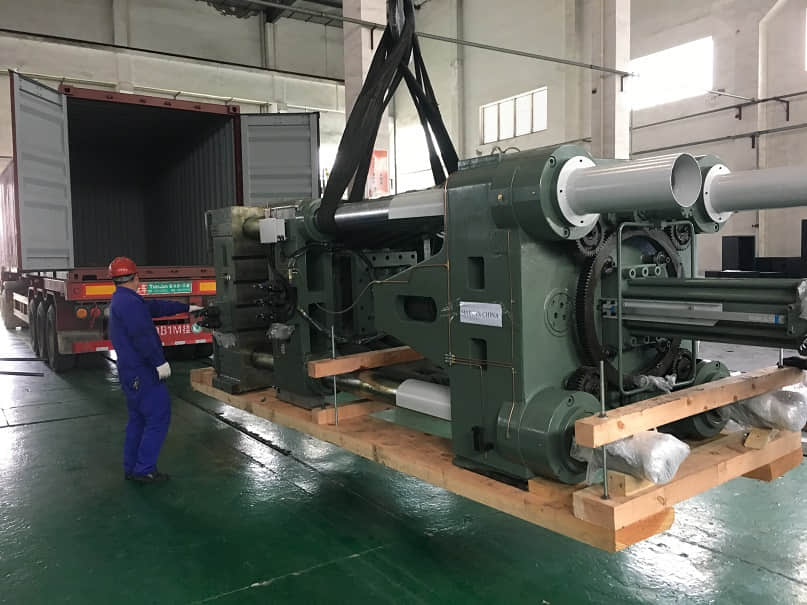

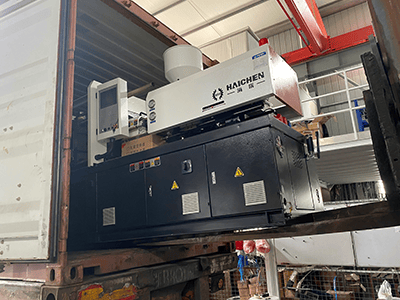

Haichen machine stock

Injection uint testing

machine barrel screw

Haichen

Mold area

Haichen is a manufacturer of injection molding machine

Choose Haichen as your injection molding machine Manufacturer for disposable cutlery. With years of experience and a commitment to quality, we have helped countless factories succeed through efficient and effective production.

Haichen can supply spoon injection molding machines, we would also like to share the information about :

plastic spoon fork making machine price
Plastic knife making machine manufacturers in China
Manufacturing process of disposable cutlery injection molding machine
What is the machine for the production of disposable cutlery?

5 steps to manufacture a ballpoint pen

1. Step 1:Raw material preparation for all of the pen components.
2. Step 2: Ballpoint pens part manufacturing process by injection molding.
3. Step 3:Pen refill production.
4. Step 4:Assembling the pens process
5. Step 5: Testing and Quality Inspection.
Haichen injection molding machines are first used in pen production to make plastic pen molding molds. According to the design parameters, make pen parts molds for pen caps, pen covers, and other parts. These molds are the foundation of the final product, ensuring that the appearance and function of the pen meet the design requirements.
The processing of various components by injection molding machines is an important step in pen production. By clamping the mold onto the pen injection molding machine, injecting melted plastic liquid, and waiting for it to cool and form, various components of the pen are produced. For example, the production process of ballpoint pens includes injection molding machine processing of various components, assembly of various components, packaging, and other steps.

The injection molding production process of ballpoint pens using PS raw materials

The production process of the injection molding machine using PS material in the manufacturing process of the ballpoint pen is as follows 5 steps:

Material preparation
Drying
Injection molding
Molding process
Post-processing

What machines are used to make pens?

What machines are used to make pens? The answer is 3 different machines:

Pen injection molding machine
Ink filling machine
Automatic assembling machine

Pen injection molding machine：in the production process of ball pens, injection molding machines process various components, including pen caps, pen covers, etc.
The pen ink refill assembly machine: required for the production of ballpoint pen ink refills is a mechanical device specifically designed to complete the assembly of ballpoint pen refills automatically. This machine can assemble the pen holder, pen cap, pen core, pen tip, and other components.
Automatic assembling machine: The main components of the ballpoint pen automatic assembly machine include the pen barrel storage mechanism, defective product removal mechanism, detection mechanism, streamline component, cotton core assembly mechanism, top rotation mechanism, hot stamping top mechanism, hot stamping module, and pressing mechanism. Machines can achieve 24-hour uninterrupted production, with production efficiency 10-15 times higher than manual labor.

What are the raw materials for making ballpoint pens?

The raw materials required for ballpoint pen production mainly include the following types of plastic pellets :
1. Polypropylene (PP): Polypropylene is a common general-purpose plastic with good mechanical properties and heat resistance, commonly used in the manufacture of various pen parts products. Like ballpoint pen tube and pen cap.
2. Polyethylene (PE): Polyethylene with good chemical resistance and low temperature resistance, is commonly used in the manufacture of injection molded pen parts.
3. Polyvinyl chloride (PVC): Polyvinyl chloride is an engineering plastic with good chemical and heat resistance, commonly used in the manufacture of ball pen plastic parts.
4. Polystyrene (PS): Polystyrene with good transparency and mechanical properties, used in the production of pen shells and precision ball pen parts. Like the barrel of ball pens.
5. Polycarbonate (PC): Polycarbonate is an engineering plastic with excellent mechanical properties and heat resistance, used in ballpoint pen manufacture.
These plastic particle raw materials are processed and mixed to form specific plastic materials, which are then manufactured into the required ballpoint pens through processes such as extrusion and injection molding.

The main cities producing ballpoint pens in China

The main cities producing ballpoint pens in China are concentrated in Fenshui Town, Tonglu, Hangzhou City, Zhejiang Province. This area is the core base of China’s ballpoint pen manufacturing industry and has a significant industrial cluster effect.

Fenshui Tonglu in Zhejiang province
Ningbo in Zhejiang province

Fenshui Town is known as the “hometown of Chinese pen making” and the “base of Chinese ballpoint pen manufacturing”. Its pen making industry originated in the late 1970s and has formed a complete industrial chain after years of development, covering mold processing, raw material supply, production and manufacturing, logistics and sales, and other links.

Ningbo, Zhejiang Province also have lots pens manufactures,like : Ningbo Beifa Pen Industry is one of the large pen making enterprises in China, with an annual output of about 3 billion pens. It used to rely on imported pen tip steel, but later achieved a breakthrough of 37% through the localization technology of Taiyuan Iron and Steel Group.

Haichne has 20 years of experience!

Haichen PET injection molding machine suit for Plastic bottle preform.

The machine control is easy with 21 different languages on the control screen.

Haichen is a manufacturer of injection molding machines. We supply the PET machines from 160 ton to 560 ton. The clamping force is from 3300KN to 30000KN.

What machines are used to make pens

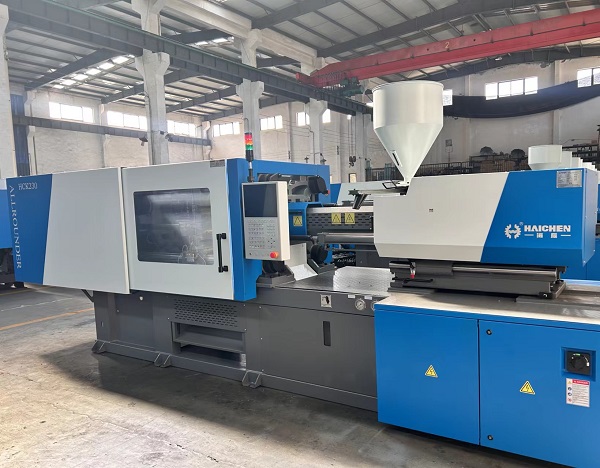

Pen Injection molding machine

Haichen injection molding machine produce the plastic parts of ballpoint pens.

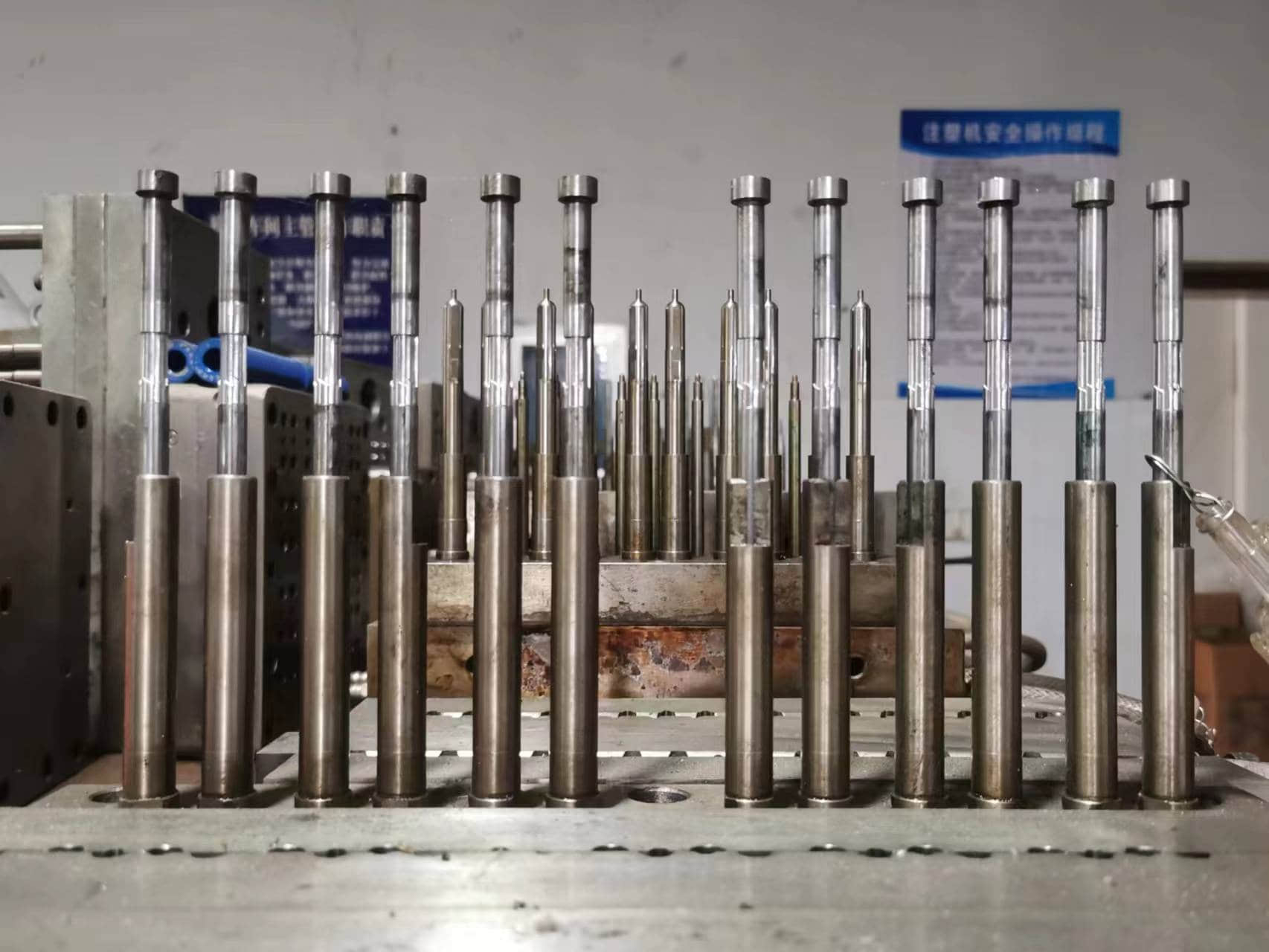

Pen molds

Different pen parts will need different plastic pen molds. It will load on the injection molding machine, injection molding the pen plastic parts.

Pen Automatic assembling machine

The pen assembling machine with two types: Automatic and semi auto.

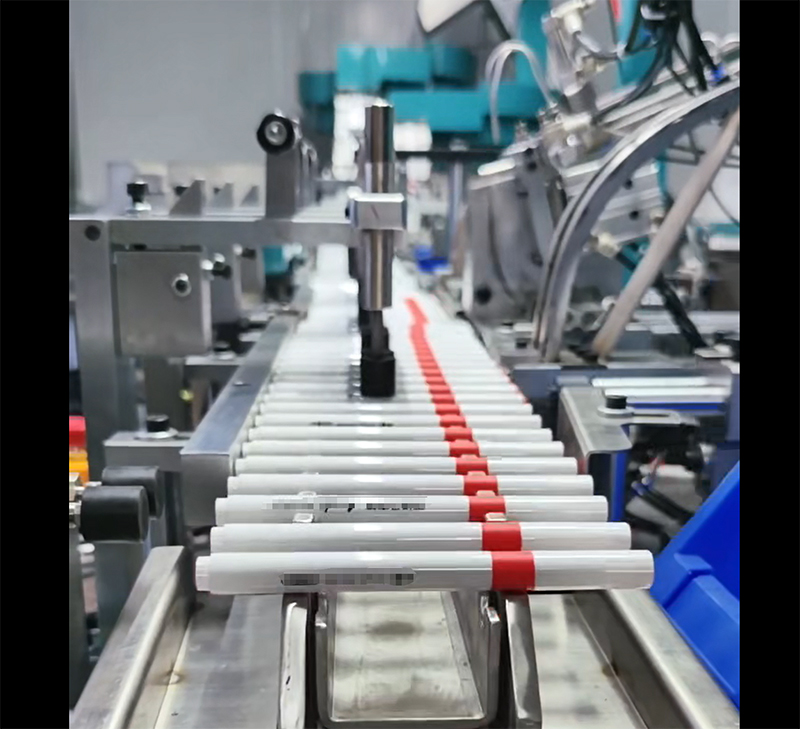

Pen printing machine

The printing machine prints the mark or OEM LOGO on the pen barrel or pen cap.

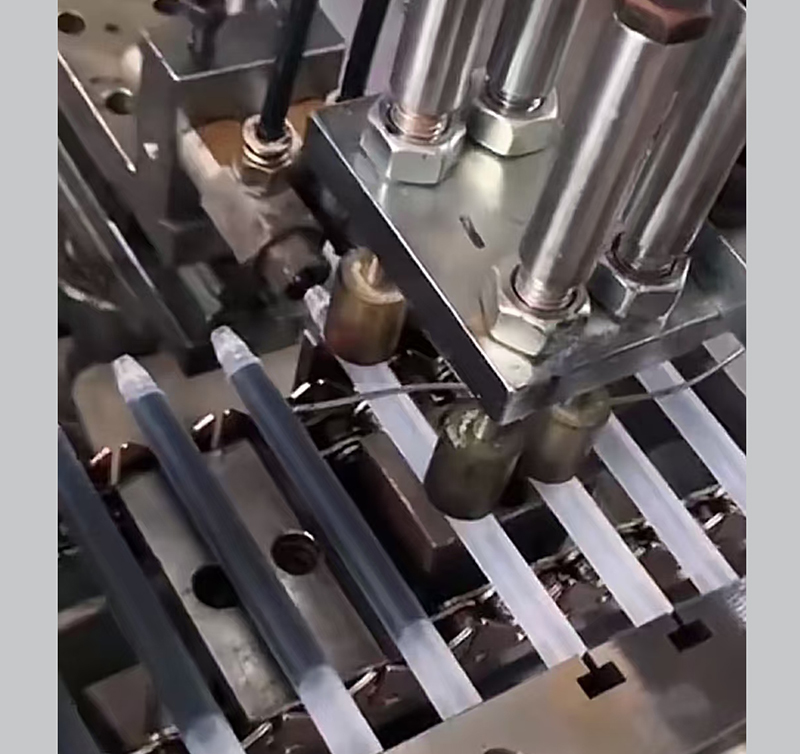

Ink filling machine

Ink filling machine is one kind of filling liquids into ink pipes.
